Super-flex hose
Firesafe Heavy Duty

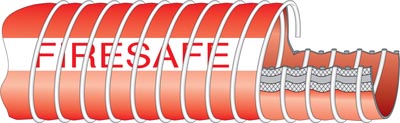

Superflex Firesafe Suction and Discharge Composite Hoses
A Firesafe Super Hose from Dantec: Whilst retaining the key advantages of composite hose will give a longer trouble free life.
Key improvements: 1. A Closer wire pitch (increases the impact resistance and reduces the risk of over-bending), 2. ECTFE lining (permeability to gases and steam many times greater than PTFE), and 3. Multiple high temperature tension members in hose wall.
| Size 1: |
4” |
6” |
8” |
10” |
| Cтандарт: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
16 |
16 |
16 |
10.5 |
| Max Working Pressure PSI: |
230 |
230 |
230 |
150 |
| Bend Radius INS: |
17.0 |
21.0 |
31.0 |
36.0 |
| Bend Radius Mm: |
430 |
540 |
800 |
915 |
| Hose Weight Kg Per M: |
6.8 |
11.3 |
16.5 |
20.5 |
| Hose Weight Lb Per Ft: |
4.6 |
7.6 |
11.0 |
13.7 |
| Inner Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
ECTFE |
ECTFE |
ECTFE |
ECTFE |
| Reinforcement: |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30c to +100c o |
-30c to +100c o |
-30c to +100c o |
-30c to +100c o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
