Danoil 9 SG Biofuel биотопливо

Danoil 9 SG
Biofuel

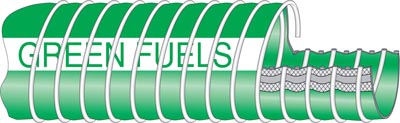

Biofuel suction and discharge hoses

With a SS inner wire this is one of the most robust hoses of the Danoil family, making it particularly suitable for the most demanding applications.

The nylon lining makes this hose especially suitable for the transfer of Biofuels, unleaded petrol, MTBE and other high aromatics. Hose conforms to BSEN13765:2010.

Size 1:	1”	1½”	2”	2½”	3”	4”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	25 mm	38 mm	50 mm	65 mm	75 mm	100 mm
Type:	3	3	3	3	3	3
Max Working Pressure Bar:	14	14	14	14	14	14
Max Working Pressure PSI:	200	200	200	200	200	200
Bend Radius INS:	4.0	5.5	7.0	8.0	11.0	15.5
Bend Radius Mm:	100	140	180	205	280	395
Hose Weight Kg Per M:	0.8	1.2	1.9	2.5	3.0	5.2
Hose Weight Lb Per Ft:	0.5	0.8	1.3	1.7	2.0	3.5
Inner Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Outer Wire Helix:	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel
Lining:	Polyamide	Polyamide	Polyamide	Polyamide	Polyamide	Polyamide
Reinforcement:	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Cover Material:	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth
Temperature Range:	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o
Safety Factor:	1:4	1:4	1:4	1:4	1:4	1:4
Max Coil Length Meter:	25	25	25	25	30	30
Vacuum Listing	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar
Max Coil Length Ft:	82	82	82	82	98	98
Heavy Duty:	No	No	No	No	No	No
