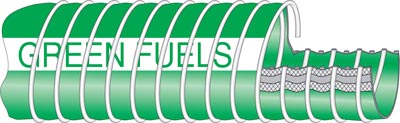

Danoil 9 AG Biofuel
Oil suction and discharge hoses
This light weight hose is designed for suction and discharge of road and rail tankers, of all oil and petroleum products. The hose is similar to Danoil 7 AG except with a polyamide (nylon) lining. It is therefore particularly suitable for the transfer of Biofuels and unleaded petrol, as a lighter option to and/or where galvanised inner wire can not be used.
Biofuels, and biodiesel in particular are not compatible with some alloys - degrading them over time. Therefore, lead solders, zinc linings, copper pipes, brass regulators, and any copper fittings should be avoided. Recommended metals for equipment are stainless steel, carbon steel, and aluminium. Hose conforms to BSEN13765:2010.
| Size 1: |
1” |
1½” |
2” |
2½” |
3” |
4” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
25 mm |
38 mm |
50 mm |
65 mm |
75 mm |
100 mm |
| Type: |
3 |
3 |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
14 |
14 |
14 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
200 |
200 |
200 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
8.0 |
11.0 |
15.5 |
| Bend Radius Mm: |
100 |
140 |
180 |
205 |
280 |
395 |
| Hose Weight Kg Per M: |
0.7 |
1.0 |
1.6 |
1.9 |
2.2 |
3.8 |
| Hose Weight Lb Per Ft: |
0.5 |
0.7 |
1.1 |
1.3 |
1.5 |
2.5 |
| Inner Wire Helix: |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
| Vacuum Rating: |
750mm Hg |
750mm Hg |
750mm Hg |
750mm Hg |
750mm Hg |
750mm Hg |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
30 |
30 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
98 |
98 |
