CRIMPED BOARDS

Ask a question about this product

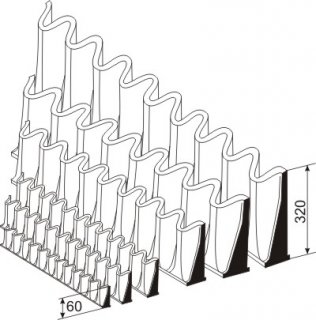

Description: N - type of crimped boards without fabric reinforcement, but the desired size can be made with reinforcement on demand; S - type of crimped boards with fabric reinforcement. Bars and crimped boards vulcanized into the conveyor belt form pockets for materials transportation under an angle up to 90º.

Use: conveyor systems, materials transportation under an angle up to 90º.

TYPE	Art. No.	HEIGHT (Swh)	BASE WIDTH (bw)	PITCH (P)	WEIGHT
N Without fabric reinforcement	S0615060	60 mm	50 mm	40 mm	1,60 kg/rm
	S0615089	80 mm	50 mm	40 mm	1,80 kg/rm
	S0615010	100 mm	50 mm	40 mm	2,10 kg/rm
	S0615012	120 mm	50 mm	40 mm	2,30 kg/rm
S With fabric reinforcement	S0625012	120 mm	50 mm	40 mm	2,40 kg/rm
	S0627516	160 mm	75 mm	60 mm	4,10 kg/rm
	S0627520	200 mm	75 mm	60 mm	5,20 kg/rm
	S0627524	240 mm	75 mm	60 mm	6,20 kg/rm
	S0627825	250 mm	78 mm	63 mm	6,40 kg/rm
	S0627828	280 mm	78 mm	63 mm	7,50 kg/rm
	S0627832	320 mm	78 mm	63 mm	8,70 kg/rm
