Shock-absorbing boards

SQUARE SHOCK-ABSORBING BOARDS

CHARACTERISTICS Hardness: Shore 60±5 Density: 1,10 g/cm3 Abrasion: 90 at 10 N Diameter of opening in rubber: 50 mm (C) Diameter of mounting hole in steel: 18 mm (D) Block dimensions: 300×300, 500×500 mm Colour: black

Wear resistant, damping, shock-absorbing square rubber blocks on steel basis; versions with/without mounting hole are available.

Use: receiving trays, hoppers, chutes, dump truck bodies.

SQUARE BOARDS		BLOCK DIMENSIONS			BLOCK HEIGHT (A), xx		STEEL THICKNESS (B)
		300 х 300 mm	500 х 500 mm
Art. No.		509033хх	509053хх		15 , 20, 25 mm		3 mm
		509035хх	509055хх		30, 35, 40, 50, 55 mm		5 mm

PP SHOCK-ABSORBING BOARDS

Rubber plates with steel base Art. No.   DIMENSIONS   THICKNESS, хх 503150xx   500 mm × 1000 mm   30, 40, 50, 60, 75, 80, 100 (xx:10), 125 (xx:12), 150 (xx:15) mm 503160xx   600 mm × 1000 mm   503175xx   750 mm × 1000 mm   503550xx   500 mm × 1500 mm   503560xx   600 mm × 1500 mm   503575xx   750 mm × 1500 mm   503015xx   1500 mm × 2000 mm     Toothed profile rubber plates Art. No.   DIMENSIONS   THICKNESS 50515080   500 mm × 1000 mm   80 mm 50516080   600 mm × 1000 mm   80 mm 50557580   750 mm × 1500 mm   80 mm

Rectangular boards from high-quality wear-resistant rubber. Developed especially in the form of module blocks for easy and quick replacement of worn protection elements of hoppers and dump truck bodies. For quick and reliable mounting of elements to the surface to be protected, plates may be provided with a metal base. PP shock-absorbing boards are made from high-quality wear-resistant rubber and belong to the class of materials developed especially for mines and ore-dressing sector. Due to a high degree of wear resistance, they have a long service life, which ensures high performance, wear protection of production systems, and saving of time and maintenance costs. Simple in mounting and handling, they help greatly reduce the level of noise and vibration as compared to steel protective sheets. They are made of rubber which is resistant to water with any pH level and most oils in small concentrations, but should not be exposed to temperatures above 70 °С for a long time. The service life of a rubber coated dump truck body is multiplied by 8, and the cost of 1 new body and motor vehicle downtime for body repair exceeds the price of a protection set by ten times. Add to this a better preservation of axles, bearings and tyres thanks to the damping properties of rubber, and the use of shock-absorbing rubber boards will become an undeniable advantage.

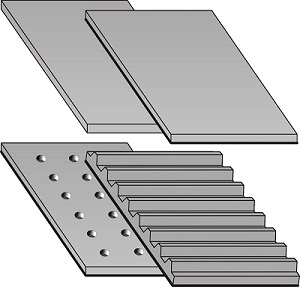

We offer the following types of PP shock-absorbing boards:

• rubber plates without steel base;
• rubber plates with steel base; steel base thickness 5 mm for rubber thickness 30 to 80 mm; metal thickness 10 mm for rubber thickness over 100 mm;
• rubber plates with steel base with prepared openings for mounting;
• toothed profile rubber plates with steel base;
• large rubber plates with steel base, dimensions 1500 mm × 2000 mm.

Use: receiving trays, hoppers, chutes, dump truck bodies.

RUBBER CHARACTERISTICS		DIMENSIONS
Hardness: Shore 60±5		Thickness: 30, 40, 50, 60, 75, 80, 100, 125, 150 mm
Operating temperature: up to 70 ºС		Dimensions: 500 (600,750)×1000, 500 (600,750)×1500, 1500×2000 mm
Colour: black		Metal thickness: 5-10 mm

PT SHOCK-ABSORBING BOARDS

Art. No.   DIMENSIONS   THICKNESS, хх 504150xx   500 mm × 1000 mm   40, 50, 60, 75, 80, 100 (xx:10), 125 (xx:12) mm 504160xx   600 mm × 1000 mm   504175xx   750 mm × 1000 mm   504550xx   500 mm × 1500 mm   504560xx   600 mm × 1500 mm   504575xx   750 mm × 1500 mm

PT shock-absorbing boards have the same characteristics as PP, but they are provided with aluminium T profile for reliable mounting. The T-profile is pre-vulcanized into the board. They are developed especially in the form of module blocks for easy and quick replacement of worn protection elements of hoppers and dump truck bodies. They are made from high-quality wear-resistant rubber and belong to the class of materials developed especially for mines and ore-dressing sector. Due to a high degree of wear resistance, they have a long service life, which ensures high performance, wear protection of production systems, and saving of time and maintenance costs. They are simple in mounting and handling, they help greatly reduce the level of noise and vibration as compared to steel protective sheets.

Use: receiving trays, hoppers, chutes, dump truck bodies.

RUBBER CHARACTERISTICS		DIMENSIONS
Hardness: Shore 60±5		Thickness: 50, 75, 80, 100, 125, 150 mm
Colour: black		Dimensions: 500 (600,750)×1000, 500 (600,750)×1500 mm
		Mounting: Aluminium T-profile



The mounting is made by means of a set of BOLT ТМ16, washer and lock nut with nylon insert:

Art. No.		DIMENSIONS		PACKAGE
50000000		35 × 35 × 6 mm		10 pcs.
