Danflon SS
Firesafe

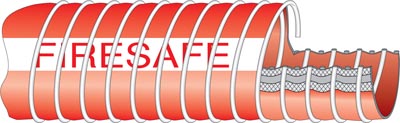

Danflon Firesafe Suction and Discharge Composite Hoses
Designed for Firesafe suction and discharge of the most aggressive chemicals and searching solvents and is generally used where the chemical resistance of polypropylene is inadequate.
Meets the requiremets of the Unites States Coastguard and IMO code.
| Size 1: |
1” |
1½” |
2” |
2½” |
3” |
4” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
25 mm |
38 mm |
50 mm |
65 mm |
75 mm |
100 mm |
| Type: |
4 |
4 |
4 |
4 |
4 |
4 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
14 |
14 |
14 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
200 |
200 |
200 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
8.0 |
11.0 |
15.5 |
| Bend Radius Mm: |
100 |
140 |
180 |
205 |
280 |
395 |
| Hose Weight Kg Per M: |
0.8 |
1.2 |
1.9 |
2.5 |
3.0 |
5.2 |
| Hose Weight Lb Per Ft: |
0.5 |
0.8 |
1.3 |
1.7 |
2.0 |
3.5 |
| Inner Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
ECTFE |
ECTFE |
ECTFE |
ECTFE |
ECTFE |
ECTFE |
| Reinforcement: |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
82 |
82 |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
25 |
25 |
| Heavy Duty: |
No |
No |
No |
No |
No |
No |
| |
|
|
|
|
|
|
