Danchem SS Standard S&D

Danchem SS
Standard

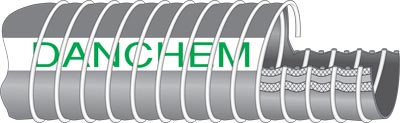

Danchem Suction and Discharge Composite Hoses

General purpose chemical hose suitable for suction discharge and vacuum applications for a wide variety of acids, alkalis, solvents and petroleum products.

Commonly used for road and rail tankers and in plant. This hose can be used to convey certain liquid food products. This hose conforms to BSEN13765:2010.

Size 1:	1”	1½”	2”	2½”	3”	4”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	25 mm	38 mm	50 mm	65 mm	75 mm	100 mm
Type:	3	3	3	3	3	3
Max Working Pressure Bar:	14	14	14	14	14	14
Max Working Pressure PSI:	200	200	200	200	200	200
Bend Radius INS:	4.0	5.5	7.0	8.0	11.0	15.5
Bend Radius Mm:	100	140	180	205	280	395
Hose Weight Kg Per M:	0.8	1.2	1.9	2.5	3.0	5.2
Hose Weight Lb Per Ft:	0.5	0.8	1.3	1.7	2.0	3.5
Inner Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Outer Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Lining:	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Reinforcement:	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Cover Material:	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth
Temperature Range:	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o
Safety Factor:	1:4	1:4	1:4	1:4	1:4	1:4
Max Coil Length Meter:	25	25	25	25	30	30
Vacuum Listing	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar
Max Coil Length Ft:	82	82	82	82	98	98
Heavy Duty:	No	No	No	No	No	No
