Danchem SS
Firesafe Heavy Duty

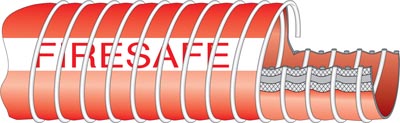

Danchem Firesafe Suction and Discharge Composite Hoses
For marine and the most arduous plant duties, these substantially constructed Firesafe hoses have greater mechanical strength than Danchem general purpose chemical hoses.
Meets the requirements of the United States Coastguard and IMO Code
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
10.5 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
150 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
405 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
20.5 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
13.7 |
| Inner Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
