Danchem PG VR
Firesafe

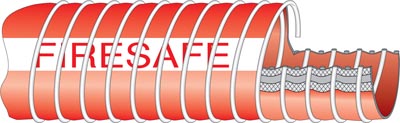

Danchem Firesafe Vapour Recovery Composite Hoses
A Firesafe composite hose built for vapour return of hydrocarbon products in marine, road and rail tanker operations. With Dantec SURE-LEC guaranteed electrical continuity.
Dantec Vapour Recovery hoses are robust, but light weight, extremely flexible and with the same specially formulated high strength cover as used on all Dantec composite hoses. Several Dantec hoses are suitable to carry liquid food products. Hose with aluminium inner wire should not be used with the more acidic products such as vinegar and/or fruit juices.
| Size 1: |
3” |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
75 mm |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
1 |
1 |
1 |
1 |
1 |
| Max Working Pressure Bar: |
7.0 |
7.0 |
7.0 |
7.0 |
10.5 |
| Max Working Pressure PSI: |
100 |
100 |
100 |
100 |
150 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
8.0 |
36.0 |
| Bend Radius Mm: |
100 |
140 |
180 |
205 |
915 |
| Hose Weight Kg Per M: |
2.4 |
3.4 |
8.3 |
12.5 |
20.5 |
| Hose Weight Lb Per Ft: |
1.6 |
2.3 |
5.6 |
8.4 |
13.7 |
| Inner Wire Helix: |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
82 |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
25 |
| Heavy Duty: |
No |
No |
Yes |
Yes |
Yes |
| |
|
|
|
|
|
