Danchem PASS 100 LPG/AMMONIA
Heavy Duty

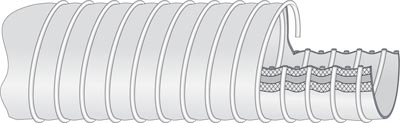

Danchem Suction and Discharge Cryogenic Composite Hoses
Loading/discharge of road and rail tankers is a typical application, with the hose being specifically designed for the transfer of liquefied gas products such as LPG, CO2, and Ammonia. EN13766:2010 Exceeds Class A
While specifically designed for cryogenic fluids, the hose is also suitable for use with a wide range of hazardous chemicals. Hoses for Ammonia are identified with Yellow Stripe. Its is important to advise us of the product being conveyed when ordering.
| Size 1: |
1” |
1½” |
2” |
2½” |
3” |
4” |
6” |
8” |
10” |
| Bore Diameter: |
25 mm |
38 mm |
50 mm |
65 mm |
75 mm |
100 mm |
150 mm |
200 mm |
250mm |
| Type: |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| Max Working Pressure Bar: |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
20 |
15 |
| Max Working Pressure PSI: |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
296 |
220 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
8.0 |
11.0 |
15.5 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
100 |
140 |
180 |
205 |
280 |
395 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
1.0 |
1.5 |
2.5 |
3.3 |
4.5 |
7.5 |
13.5 |
18.5 |
25 |
| Hose Weight Lb Per Ft: |
0.7 |
1.0 |
1.7 |
2.2 |
3.0 |
5.0 |
9.0 |
12.4 |
17.4 |
| Inner Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
| Cover Material: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Temperature Range: |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
1:5 |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
30 |
30 |
30 |
30 |
30 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
98 |
98 |
98 |
98 |
98 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
