Danchem PASS 100 CO2
Heavy Duty

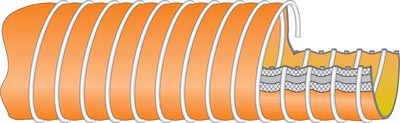

Danchem Suction and Discharge C02 Cryogenic Composite Hoses
A specially designed composite hose for the suction and delivery of CO2. Conforms to IMO and Gas Carrier Codes.
Its is important to advise us of the product being conveyed when ordering.
| Size 1: |
1” |
1½” |
2” |
| Bore Diameter: |
25 mm |
38 mm |
50 mm |
| Type: |
1 |
1 |
1 |
| Max Working Pressure Bar: |
25 |
25 |
25 |
| Max Working Pressure PSI: |
370 |
370 |
370 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
| Bend Radius Mm: |
100 |
140 |
180 |
| Hose Weight Kg Per M: |
1.0 |
1.5 |
2.5 |
| Hose Weight Lb Per Ft: |
0.7 |
1.0 |
1.7 |
| Inner Wire Helix: |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| Outer Wire Helix: |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polyamide Polyester |
Polyamide Polyester |
Polyamide Polyester |
| Cover Material: |
PU coated Polyester |
PU coated Polyester |
PU coated Polyester |
| Temperature Range: |
-104 to +80 o |
-104 to +80 o |
-104 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
| Max Coil Length Meter: |
25 |
25 |
25 |
| Max Coil Length Ft: |
82 |
82 |
82 |
| Heavy Duty: |
Yes |
Yes |
Yes |
| |
|
|
|
| |
|
|
|
