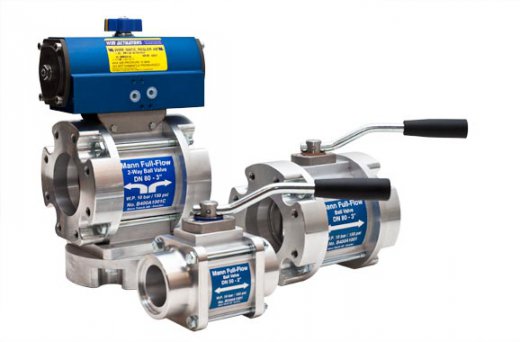

Full Flow Ball Valves in Aluminium

Full Flow Ball Valves and 2-way Ball Valves are specially designed for handling different types of fuels such as diesel, gasoline, Jet fuel etc. in Tank trucks. Mann Tek Ball Valves in Aluminium offer weight saving benefits to the road tanker industry and they are also used in different types of fixed plant and mobile fuelling applications.

All sizes of Mann Tek Ball Valves and 2-way Valves are available with pneumatic actuation in either single or double acting form.

Ball Valves Applications

• Petroleum Tank trucks
• Tank trucks for solvents
• Dispenser and Tank trucks for aircraft refueling
• Stationary and mobil equipment for aircraft refuelling
• Loading Aviation refueller

Advantages - Mann Tek Ball Valves

• Unflattened flanges do not affect the balls torque.
• All wetted parts in: Aluminium,Stainless Steel, FPM (Viton®), PTFE (Teflon®).No Yellow parts.
• The sealing stays in its position also when you are regulating high flowrates.
• Low pressure drop.
• Easy to serve: The spindle can easily be dismounted,even if the ball valve is installed.
• The valve is assembled as one unit - not kept together by the flanges.
• Inbuilt measurements as common standard.
•

Advantages Ball Valves in Aluminium

1. The spindle can easily be dismounted even when the ballvalve is installed.
2. Pneumatic actuators available for all sizes, 90º operating, single/double acting.
3. Irregular or crowned flanges do not affect the ball torque.
4. All wetted parts in Aluminium and Stainless Steel, Sealings in FPM (Viton®) and PTFE (Teflon®).
5. The biggest run of all brands.
6. The sealing stays in its position also when you are regulating high pressure drop.
7. Inbuilt measurements replace other brands
8. Minimum liquid remains in the ball valve
9. The valve is assembled as one unit - not kept together by the flanges
10. The flowrate through the ball is optimized for low pressure drop.

Technical summary for Ball Valves

All sizes of Mann Tek Ball Valves and 2-way Valves are available with pneumatic actuation in either single or double acting form.

Sizes

2” (DN 50) to 4” (DN 100)

Connections:

Full Flow ball Valves and 2-way Ball Valves are available with BSP- and NPT-threads and with flanges (DIN, ANSI, TW, TTMA, EN 1092-1:2001).

Maximum Working Pressure:

MWP PN 10
MAWP 150 psi

Material:

Body: Aluminium
Ball: Aluminium
Spindle: Stainless Steel

Seals:

Teflon® (PTFE), Viton® (FPM). Other Seals on request.
