TELESCOPIC END-PIPE Serie 4010

TELESCOPIC END-PIPE Serie 4010

TELESCOPIC END-PIPE Serie 4010

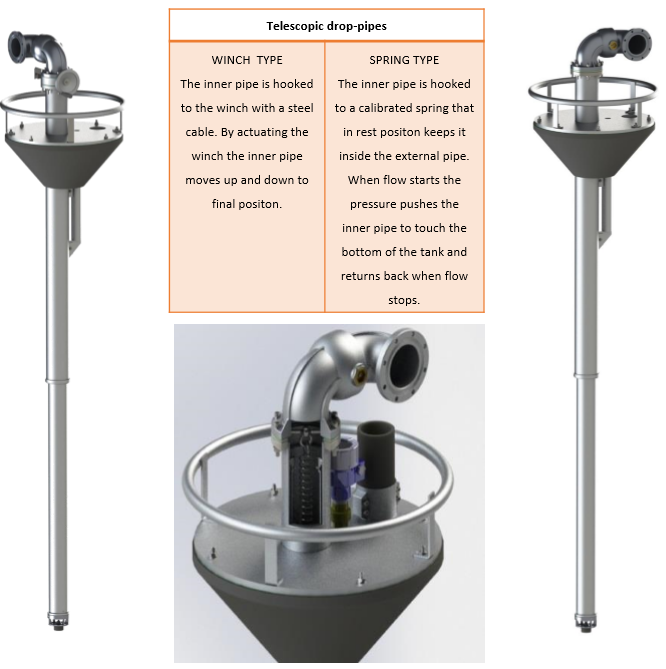

The series 4010 Telescopic Drop-Pipe has a sliding pipe that allows to touch the bottom of the tank to be loaded. It can be adjustable by handle with a winch or can be spring loaded. Touching the bottom of the tank, the telescopic drop pipe reduces static electricity and limits the formation of foam .It can be used on road tankers and rail tank wagons. This device is also suggested when there are some vertical movement limitations because of a roof.



Standards and Regulations

* Conformity Declaration of current Directive PED for Pressure Equipment

* Conformity Declaration of current Directive ATEX for Equipment used in Potentially explosive atmospheres

* Customs Declaration of certification for Russia, Kazakhstan, Belarus, EAC certification.

* Standard API-ASTM-ANSI-TTMA.



Accessories:

* Vibration level sensor Ex-d II2GD

* Vibration level sensor Ex-ia II2GD

* Vapour recovery hose 2’’

* Vapour recovery hose 3’’



Standard documentation

* Declaration of conformity to regulations

* Declaration of material conformities and functional test (CCC)

* Operation and maintenance manual (MUM)

Documentation on request

* Materials specifications map (MIM):

• Certification 3.1 EN 10204 for steel

• Certification 2.2 EN 10204 for aluminium

pdf, 523,54 KB
Declaration EAC
pdf, 419,71 KB
Certificate PED
pdf, 1,11 MB
Certificate ISO9001
pdf, 2,63 MB
Certificate TDT
